model project |
YG-D200G |
YG-D250G |
YG-D300G |
YG-Z200G |
YG-Z225G |
YG-Z300G |
|

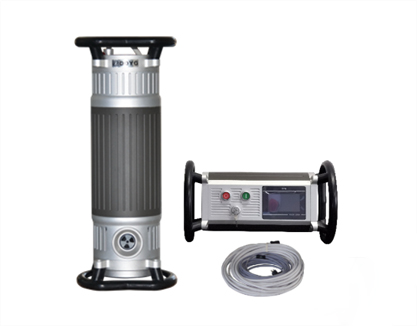

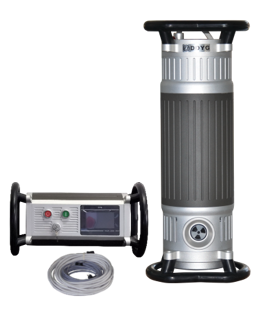

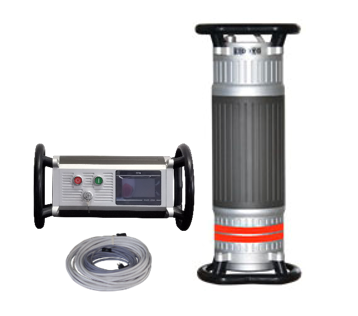

Equipment pictures |
|
|
|
|
|||
X-ray generator weight (kg) |
17kg |
20kg |
23kg |
—— |
25kg |
28kg |
|
Overall dimensions (mm) |
Φ246×596（mm） |
Φ264×690（mm） |
Φ295×750（mm） |
—— |
Φ294×745（mm） |
Φ294×790（mm） |
|
Controller weight (kg) |
11kg |
||||||
Controller size (mm) |
Φ264×458（mm） |
||||||
Focus size (mm) |
2.5mm |
2.5mm |
3.0mm |
0.5×5.5（mm） |
|||
Radiation angle (°) |
44° |
40° ×40° |
40°×40° |
40°×360° |
|||
Max thickness of A3 steel (mm) |
40mm |
50mm |
70mm |
—— |
35mm |
55mm |
|
Kilovolt adjustment range (kv) |
80 ~200（kv） |
50 ~250（kv ） |
120 ~300（kv ） |
—— |
120-225（kv） |
120-300（kv ） |
|
Milliampere adjustment range (mA) |
0.5 ~3 mA ±0.1mA |
||||||
Max output power (W) |
600w |
750w |
900w |
—— |
675w |
900w |
|
Radiation leakage value (msv/h) |
≯ 2,0 msv/h |
≯ 5,0 msv/h |
—— |
≯ 5,0 msv/h |
≯ 5,0 msv/h |
||
Protection temperature (℃) |
85℃ |
||||||
Storage temperature (℃) |
-25˚C~ +70˚C |
||||||
Supply voltage (v) |
AC190-265v / 50–60 Hz |
||||||
